Expand your Torque Pro capabilities by adding this plugin to monitor specific HYUNDAI vehicle parameters.

Monitor specific HYUNDAI parameters in real-time, including detailed engine and automatic transmission sensor data, by integrating this plugin with Torque Pro.

Advanced LT is a plugin for Torque Pro that extends the PID/Sensor list with HYUNDAI-specific parameters. Try the plugin with limited sensors before purchasing. This version does not include calculated sensors such as Injector Duty Cycle (%) or HIVEC mode.

*PLEASE NOTE*: Other HYUNDAI models and engines may be compatible, but this plugin has been tested exclusively on the following:

* Accent 1.4/1.6 MPI

* Accent/Solaris 1.4/1.6 GDI

* Accent/Solaris 1.6 CRDI

* Elantra/i30 2.0

* Genesis Coupe 2.0 MPI/GDI

* Genesis Coupe 3.8 V6

* Getz 1.5 CRDI

* Getz 1.6/1.4/1.3 MPI

* i30 1.6 GDI

* i30 1.6 CRDI

* i40 2.0 MPI

* i40 1.6 GDI

* i40 1.7 CRDI

* SantaFe 3.3 V6

* SantaFe 2.0 CRDI

* SantaFe 2.4 MPI/GDI

* SantaFe 2.7 V6

* SantaFe 2.0/2.2 CRDI

* SantaFe 3.3 V6

* Sonata 2.0/2.4 MPI/GDI

* Sonata/i45 2.0/2.4 MPI/GDI

* Sonata 2.0 T-GDI

* Tiburon 2.0 MPI

* Tiburon 2.7 V6

* Terracan 2.9 CRDI

* Tucson 2.0 CRDI

* Tucson 2.0 MPI

* Tucson 2.7 V6

* Tucson/ix35 2.0/2.4 MPI/GDI

* Tucson/ix35 2.0 CRDI

* Veloster 1.6 MPI/GDI

* Veloster 1.6 T-GDI

* Veracruz/ix55 3.8 V6

* Veracruz/ix55 3.0 CRDI

The plugin also includes an ECU Scanner, which is useful for finding specific sensors on HYUNDAI engines not yet supported. Simply record at least 1000 samples and send the logs to the developer.

Advanced LT requires the latest version of Torque Pro to function. This is *NOT* a standalone application and will *NOT* work without Torque Pro.

Plugin Installation

-------------------------

1) After downloading the plugin from Google Play, verify it appears in your Android device's installed applications list.

2) Launch Torque Pro and tap the "Advanced LT" icon.

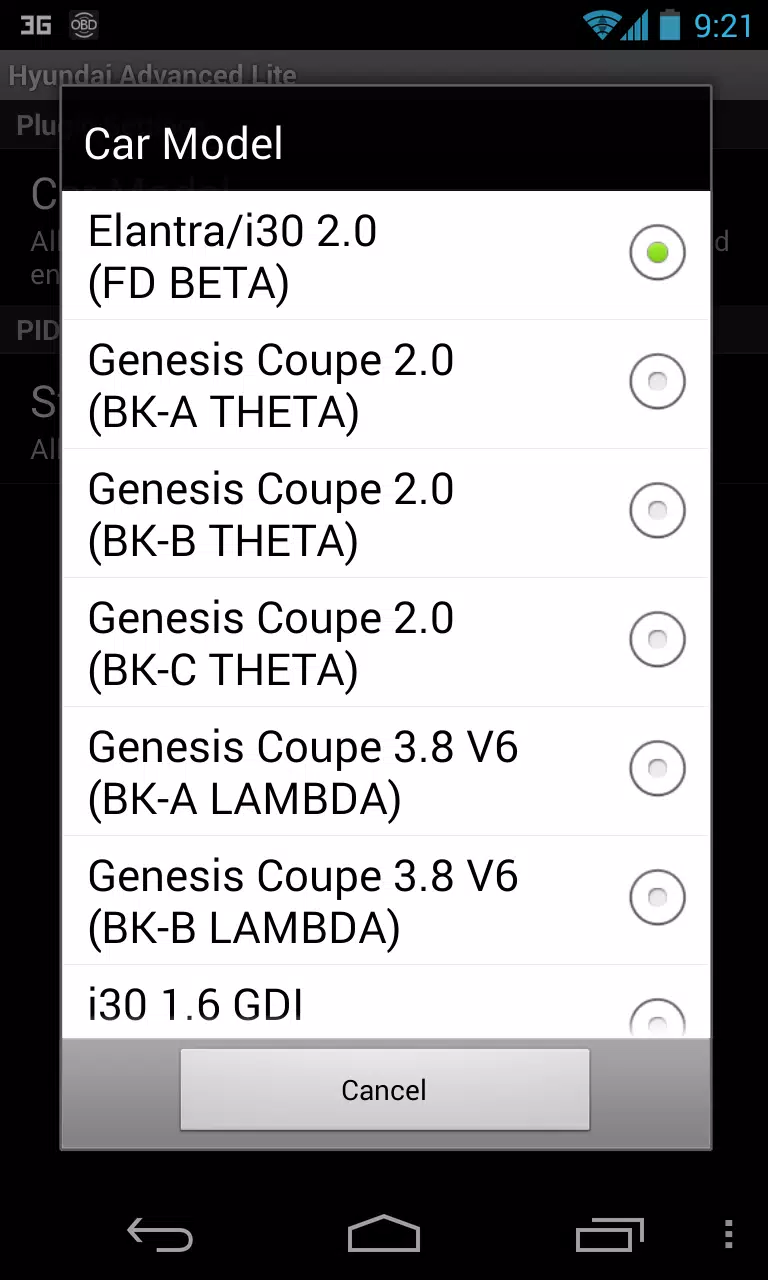

3) Select the appropriate engine type and return to the Torque Pro main screen.

4) Navigate to Torque Pro "Settings".

5) Confirm the plugin is listed in Torque Pro by going to "Settings" > "Plugins" > "Installed Plugins".

6) Scroll down to "Manage extra PIDs/Sensors".

7) This screen typically displays no entries unless you have added pre-defined or custom PIDs previously.

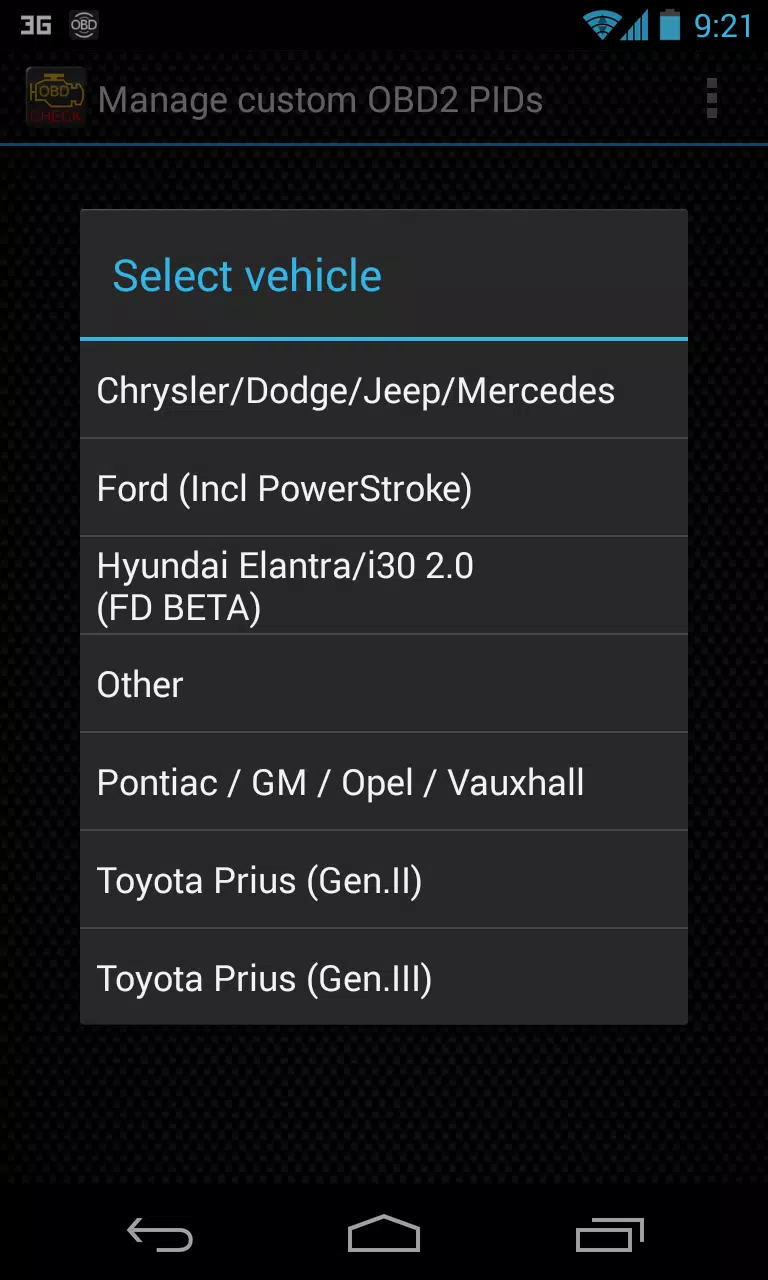

8) From the menu, select "Add predefined set".

9) You may see predefined sets for other HYUNDAI engine types—ensure you select the correct one.

10) After selecting the entry, additional items should appear in the Extra PIDs/Sensors list.

Adding Displays

------------------------

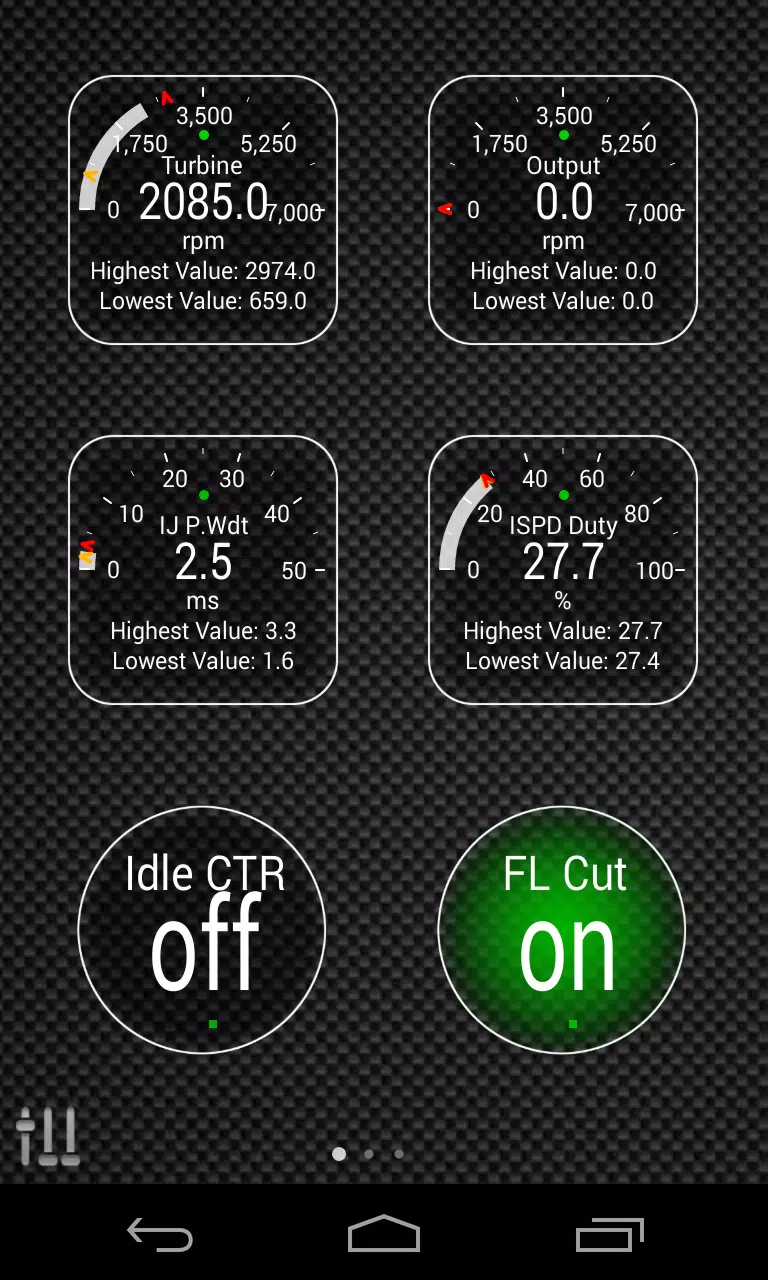

1) Once you have added the extra sensors, go to the Realtime Information/Dashboard.

2) Press the menu key and select "Add Display".

3) Choose the desired display type (Dial, Bar, Graph, Digital Display, etc.).

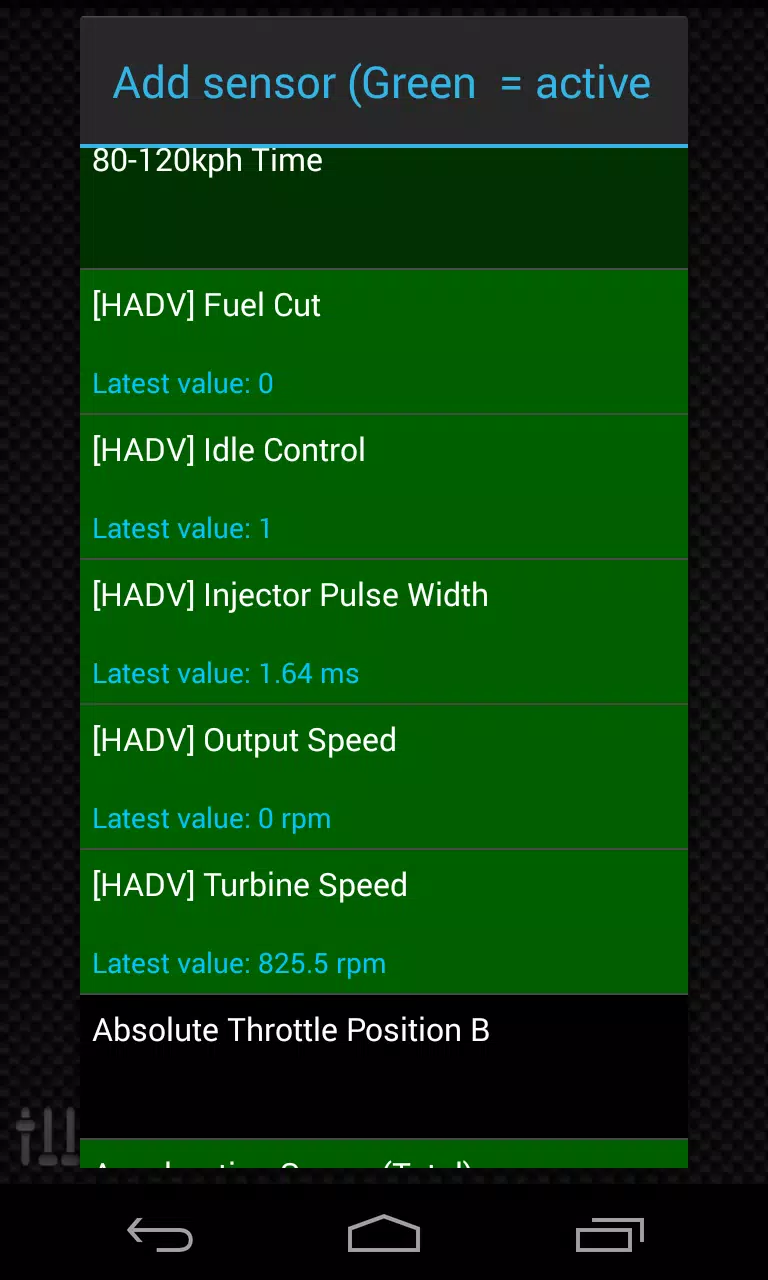

4) Select the corresponding sensor from the list. Sensors from Advanced LT start with "[HADV]" and are listed near the top, right after time sensors.

Future releases will include more features and parameters. Your feedback and suggestions are welcome.
